Modern logistics infrastructures demand optimized structural utilization, reducing square footage costs while maintaining continuous selectivity. As a premier global supplier, we engineer, produce, and inspect heavy-duty industrial warehouse racking designed specifically for Narrow Aisle and Very Narrow Aisle layouts. Utilizing certified structural steels, automated robotic processes, and standardized quality-control checks, our system increases payload efficiency and storage capacity by up to 100% compared to standard wide-aisle configurations.
| Parameters | Standard Aisle | VNA System |
|---|---|---|
| Aisle Width | 3.2m - 3.8m | 1.5m - 1.8m |
| Max Height | Up to 8m | Up to 15m+ |
| Floor Space Utilization | ~35% - 40% | ~60% - 65% |
| Selectivity | 100% Access | 100% Access |

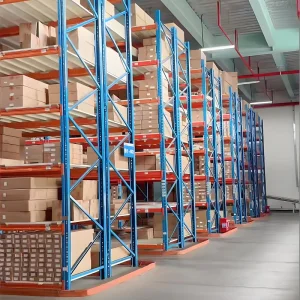

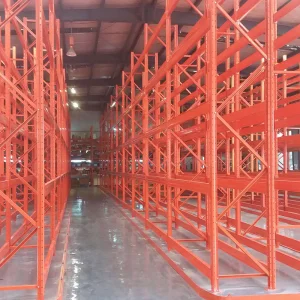

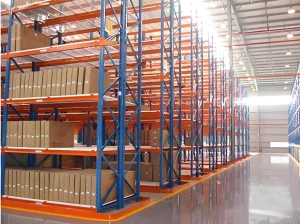

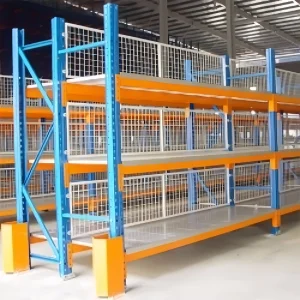

Discover our primary configuration offerings designed for various material handling setups.
Understanding the micro and macro economic factors driving advanced high-density warehouse racking integration.
The logistics and storage industries globally are seeing unprecedented floor-space cost escalation. Industrial real estate values in North America, Western Europe, and key Asia-Pacific transport corridors have registered high multi-year compound annual growth rates. This macro-environmental squeeze makes standard warehouse space expansion cost-prohibitive. Consequently, enterprise distribution operations are pivoting towards optimization—specifically exploiting vertical clearance (height) and narrowing working aisles. Very Narrow Aisle (VNA) systems represent the peak of non-automated high-density pallet storage configurations.

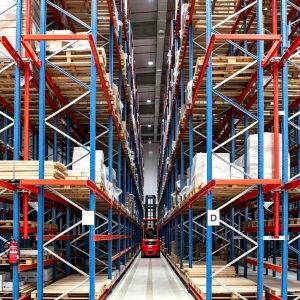

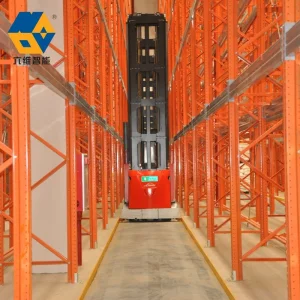

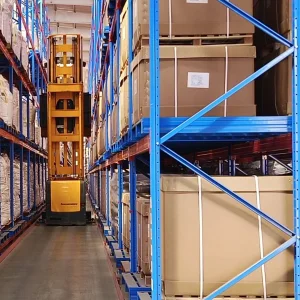

VNA structural racking reduces operating aisle width from typical selective setups (averaging 3.6 meters) to narrow dimensions down to 1.5 meters. By integrating specialized reach trucks, three-way turret trucks, or automatic guided vehicles (AGVs), companies optimize spatial efficiency. This changes the dynamics of storage layout optimization. High-volume distribution operations can scale up vertically to 15 meters or higher. By using height configurations, organizations increase spatial yield without expanding the site's external physical footprint.
Reduces industrial footprint demands by up to 50% for equivalent pallet count objectives.
Unlike drive-in or push-back arrays, VNA layouts preserve direct 100% SKU access for every pallet position.
Structural paths, tolerances, and guidance configurations match modern autonomous turret truck requirements.
Your Global Partner for Advanced Structural Storage Systems and Precision Engineering
Nanjing Ciho Racks Co., Ltd. is a professional manufacturer and supplier specializing in warehouse storage systems and industrial racking solutions. With years of experience in the material handling industry, we are committed to providing efficient, durable, and cost-effective storage solutions for customers worldwide.
Our product range includes selective pallet racks, drive-in racks, cantilever racks, mezzanine systems, longspan shelving, steel platforms, carton flow racks, and customized warehouse storage solutions. Designed for maximum space utilization and operational efficiency, our products are widely used in logistics centers, manufacturing facilities, distribution warehouses, e-commerce fulfillment centers, and retail storage applications.
At Ciho Racks, quality is our top priority. From product design and raw material selection to manufacturing and final inspection, every step is carried out under strict quality control standards to ensure reliability, safety, and long service life. Our experienced engineering team works closely with customers to develop tailored storage solutions that meet specific warehouse requirements.
Driven by innovation, customer satisfaction, and continuous improvement, we have established long-term partnerships with clients across Europe, North America, Southeast Asia, the Middle East, and many other regions. Nanjing Ciho Racks Co., Ltd. is dedicated to delivering high-quality products, competitive pricing, on-time delivery, and professional technical support. We look forward to becoming your trusted partner for warehouse storage and logistics solutions.
How quality components are formed, welded, and finished inside our Nanjing manufacturing facility.
High-strength Q235B/Q355B structural steel coils sourced directly from top domestic mills with certified metallurgy.
Cold-roll stretching and profiling lines shape profiles with precise cross-sectional dimensions.
Automated high-speed flying shear lines cut posts and beams to precise structural design drawings.
Trained welders secure structural connectors and baseplates under rigorous stability protocols.
Multi-stage pretreatment followed by electrostatic thermosetting powder coat application.
High-temperature curing ovens bake coatings for a hard, scratch-resistant, long-lasting surface.
Rigorous dimensional testing, weight-bearing validation, and export packaging for overseas transport.
Organized raw structural profile inventories ready for custom orders and bulk export distribution.
Advanced profile rolling mills yield high precision and consistency for upright column production.
Automated welding systems produce uniform structural joint welds, minimizing micro-cracking defects.
CNC press brake machinery ensures exact bend angles for customized heavy-duty base brackets.
Why leading global integrators choose Nanjing Ciho Racks as their core equipment partner.
China remains the primary supplier of industrial storage racking because of its fully integrated steel supply chains. The Nanjing region is a hub for structural material processing. Having cold-rolling facilities and automatic finishing lines nearby reduces internal logistics and transportation overheads. As a result, Nanjing Ciho Racks delivers premium structural performance without long lead times or high manufacturing costs.
Automating structural fabrication is critical to achieving tight VNA height requirements. When warehouse systems reach 15 meters, even minor design deviations at the base can lead to significant vertical displacement at the top. We address this using automated welding robots and CNC bending machines. This machinery reduces variance in column perforation pitch, component alignment, and weld integrity. It guarantees that our frames install properly and remain safe under heavy loads.
We use steel with full metallurgical heat traceability and verified chemical compositions.
A continuous spray line applies a 60-90 micron thick layer to protect against rust and abrasions.
OEM and ODM systems tailored to match regional building codes and seismic design criteria.
Very Narrow Aisle installations require matching local handling machinery and structural specifications. Depending on the warehouse profile, engineers typically design with one of two guidance configurations:

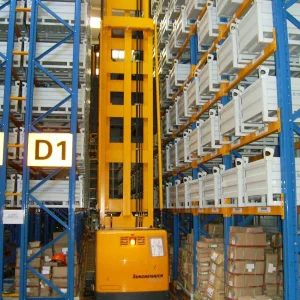

1. Mechanical Guide Rails: Made of heavy-section steel angle profiles (e.g., L100x10 or L120x80) anchored directly into the warehouse concrete slab. The base wheels of three-way turret trucks run between these rails, keeping the vehicle aligned inside the narrow aisle. This mechanical physical barrier minimizes steering errors and allows for fast travel down the aisles.
2. Inductive Wire Guidance (Wire-guided VNA): A copper wire is embedded into a shallow cut in the concrete slab down the center of the aisle. The wire emits a low-frequency radio signal detected by sensors on the turret truck. An automatic steering system follows this path. This system removes the need for mechanical profile rails, making it easier to clean the warehouse floor and reducing impact hazards.
The shift toward hybrid automation, structural sustainability, and smart warehousing.
The material handling industry is moving away from manual operations. Standard turret trucks are increasingly being replaced by Automated Guided Vehicles (AGVs) and robotic cranes. This shift requires high structural precision. Racking tolerances must be tighter to prevent collision errors. Nanjing Ciho Racks designs systems to handle these strict parameters, ensuring alignment even under heavy loads.
Sustainability is also driving changes in steel sourcing and manufacturing. We focus on structural designs that maximize strength while using steel efficiently. This reduces the carbon footprint per pallet position. Additionally, our durable powder coatings are free of VOCs, aligning with clean-energy mandates for green industrial warehouses.
Maximum System Height
Premium Steel Grade
Column Alignment Tolerance
Direct SKU Accessibility
Key structural criteria and quality checks for purchasing managers and logistics engineers.
When procuring structural steel racking from overseas partners, look beyond basic cost-per-pallet metrics. High-bay VNA racks are subject to complex static and dynamic forces. Procurement specifications should include:
Very narrow aisle trucks require flat floors (typically Superflat or DIN 15185 compliant). Floor unevenness is magnified at 15m heights, increasing impact risks.
Include heavy-duty base protectors and barrier rails at the entry points of each aisle. This guards against forklift collisions and structural damage.
Ensure that maximum beam deflections do not exceed L/200 under load. This is essential for safety, smooth operation, and meeting insurance requirements.
Answers to common structural design and purchasing questions for VNA racking systems.
VNA racking is a high-density pallet storage configuration based on selective pallet rack components. It reduces aisle widths to between 1.5 and 1.8 meters. The layout works with specialized materials handling equipment like turret trucks or AGVs, allowing for vertical storage heights up to 15 meters while maintaining 100% SKU access.
We construct our uprights and load-bearing beams from Q235B and Q355B structural carbon steel. These steel grades are selected for their high yield strengths, weldability, and performance under heavy load stresses. This ensures the structural integrity of high-bay warehouse systems.
Mechanical guide rails (bolted to the floor) act as a physical barrier that prevents trucks from hitting the racking, which is useful for rapid operations. Wire guidance uses an electromagnetic line embedded in the floor. This system leaves the aisle floor clear, reducing debris buildup and eliminating tripping hazards, but requires consistent sensor tracking on the vehicles.
Nanjing Ciho Racks designs and structural-tests its systems to meet international standards. These include the European FEM 10.2.02 codes, American RMI specifications, and the Australian AS4084 standard. We supply custom test certifications and load-distribution capacity documentation for every project.
Because VNA trucks carry loads at high elevations, floor flatness is critical. The slab must meet DIN 15185 or ASTM E1155 Superflat (Fmin 100) specifications. Even minor floor variations can cause the top of the mast to sway, which can lead to structural collisions.

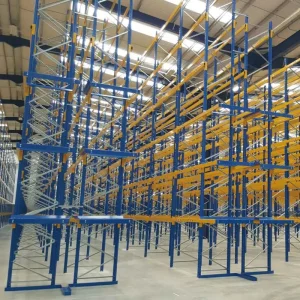

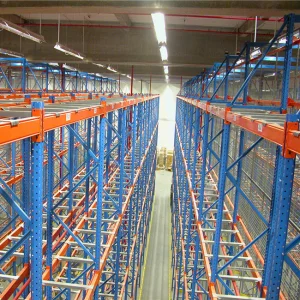

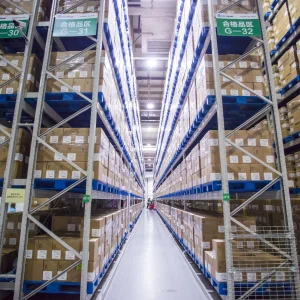

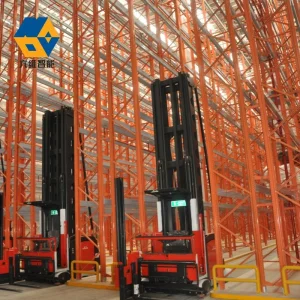

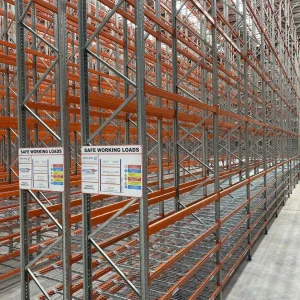

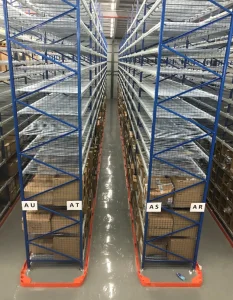

Browse our high-capacity VNA solutions tailored for specific load demands.
